Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices

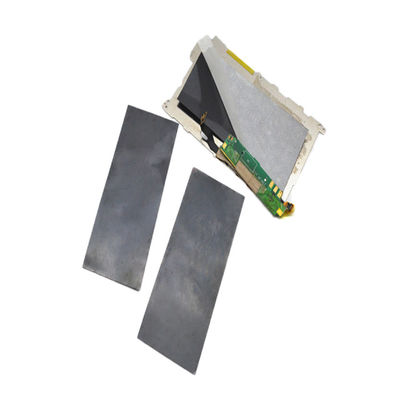

تصویر بزرگ : Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices

جزئیات محصول:

Place of Origin:	China
نام تجاری:	Ziitek
گواهی:	RoHs
Model Number:	TS-TIR700-25

پرداخت:

Minimum Order Quantity:	1000PCS
قیمت:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days
Supply Ability:	100000pcs/day

مخاطب

توضیحات محصول جزئیات

Product name:	Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices	Material:	Carbon Fiber Filled Silicone
Density:	2.9g/cm³	Thermal conductivity (Z Axis Direction):	25.0W/m-K
Hardness:	85±5 /60±10 Shore 00	Application:	Wearable Devices
Color:	Gray	Keywords:	Carbon Fiber Thermal Pad

Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices

TS-TIR^®700-25 Series series is a high-performance carbon-based thermal pad that combines highly thermally conductive carbon fiber with polymer silicone materials. Utilizing advanced manufacturing processes to precisely distribute thermal pathways, it achievese xceptional thermal conductivity, effectively reducing interfacial thermal resistance and enhancing heat dissipation efficiency. With its ultra-thin, lightweight design and mechanical flexibility, it is suitable for 5G equipment, high-performance chips, and other high heat flux applications.

Feature

> Good thermal conductivity 25w/mK

> Ultra-low thermal resistance
> works under low pressure.

> Non-insulating material

> Non-adhesive surface

Application

> Between chips and heat dissipation modules

> 5G communication equipment
> Optoelectronics industry

> Wearable devices

Typical Properties of TIR^®700-25 series
Product Name	TIR^®700-25		Test Method
Colour	Gray		Visual
Construction	Carbon fiber filled silicone		*****
Thickness range	0.01"~0.02" (0.3~0.5 mm)	0.04"~0.20"(1.0~5.0 mm)	ASTM D374
Hardness	85±5 Shore 00	60±10 Shore 00	ASTM D2240
Density	2.9g/cm3		ASTM D792
Operation Temperature	-40℃~ 200℃		******
Thermal impedance	25.0W/m-K		ASTM D5470
Specific heat capacity (J/g ℃)	0.75		ASTM E1269 @25℃
Flame Rating	V-0		UL94
RoHS	Compliant		IEC62321

Product Specification
Standard Thickness:0.01" (0.3mm), 0.02"(0.5mm), 0.04"(1.0mm), 0.06" (1.5mm), 0.08" (2.0mm), 0.10" (2.5mm), 0.12" (3.0mm)

Standard Size: 1.97"×1.97"(50.0mm x 50.0mm)

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
