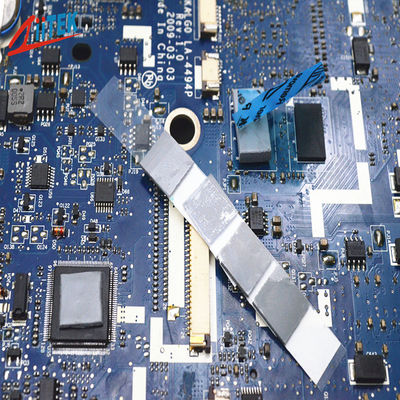

Thermal Pad Manufacturer High Temperature Silicon Thermal Pad For AI Servers AI Processors
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

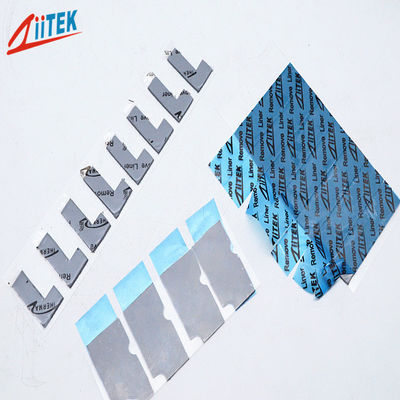

The TIF®700M Series is a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between costand performance.
Features:
> High thermal conductivity: 6.0W/mK
> Good flexibility and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Easy release construction
> Electrically isolating
> High durability
Applications
> AI Servers, Inverters, Telecom Devices
> Power tools
> Network communication products
> Electric vehicle batteries Computer CPU/GPU Cooling
> New energy vehicle power systems
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
| Typical Properties of TIF®700M Series |
| Property |
Value |
Test method |
| Color |
Gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.4 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.020~0.030
(0.50~0.75)
|
0.040~0.200 (1.0~5.0) |
ASTM D374 |
| Hardness |
60 Shore 00 |
50 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant |
4.2 MHz |
ASTM D150 |
| Volume Resistivity |
＞1.0X1013 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
6.0 W/m-K |
ASTM D5470 |
|
6.0 W/m-K
|
ISO22007 |
Product Specifications
Standard Thickness: 0.020"(0.5 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes: FG (Fiberglass) provides enhanced strength,
suitable for materials with thicknesses of 0.010" to 0.020" (0.25mm to 0.50mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
